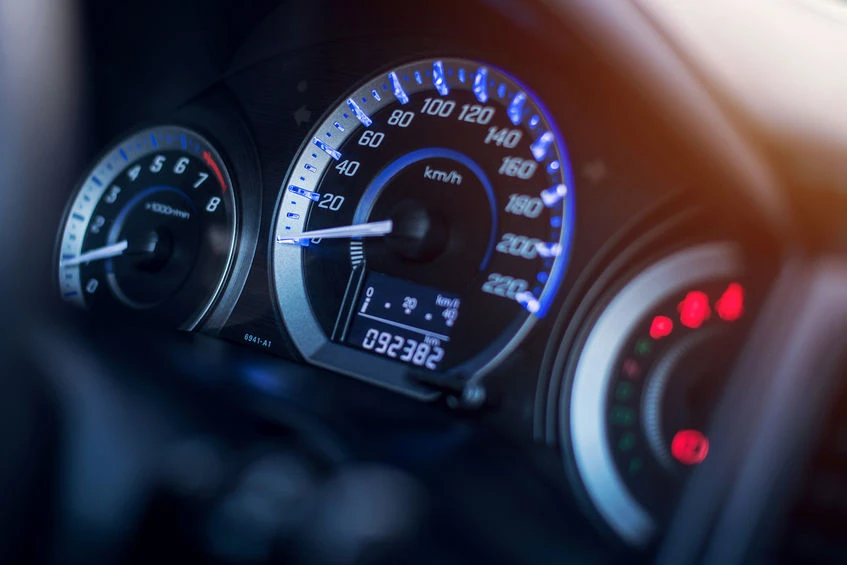

Many drivers still assume that the numbers displayed on a tachometer are directly related to vehicle speed in kilometers per hour (km/h). However, a tachometer has a different function from a speedometer.
While the speedometer shows how fast a vehicle is moving, the tachometer measures engine speed in RPM (Revolutions Per Minute), or the number of times the engine rotates in one minute.
Simply put, the tachometer tells the driver how hard the engine is working by calculating how many times the crankshaft rotates every minute.

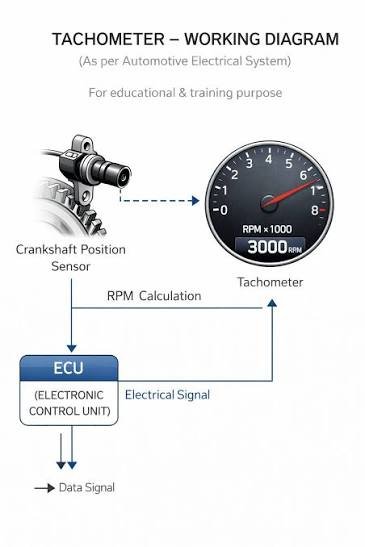

How Does a Modern Tachometer Work?
In modern vehicles, the tachometer operates using electronic sensors connected to the engine system.
1. Sensors Detect Engine Rotation
The main component used is the Crankshaft Position Sensor or a Hall effect sensor. This sensor monitors the movement of a toothed wheel that rotates along with the engine crankshaft.
When the engine is running, every crankshaft rotation creates a specific signal pattern that can be detected by the vehicle’s system.
2. Converting Rotation into Electrical Signals
Every time a tooth on the sensor wheel passes the sensor, a change in the magnetic field occurs, producing an electrical pulse.
The faster the engine rotates, the more frequent these electrical pulses become. The frequency of these pulses allows the system to determine the engine RPM accurately.
3. ECU Processes the Data
The signals are then received by the Engine Control Unit (ECU). The vehicle’s computer calculates the number of pulses within a certain period and converts them into an RPM figure that can be understood by the driver.
4. Displayed on the Instrument Panel
The calculated RPM data is then displayed through the instrument panel:
- Analog tachometer: Moves the indicator needle using a small motor (stepper motor).
- Digital tachometer: Displays RPM numbers or graphics directly on a digital screen.
Why Is RPM Different From Vehicle Speed?

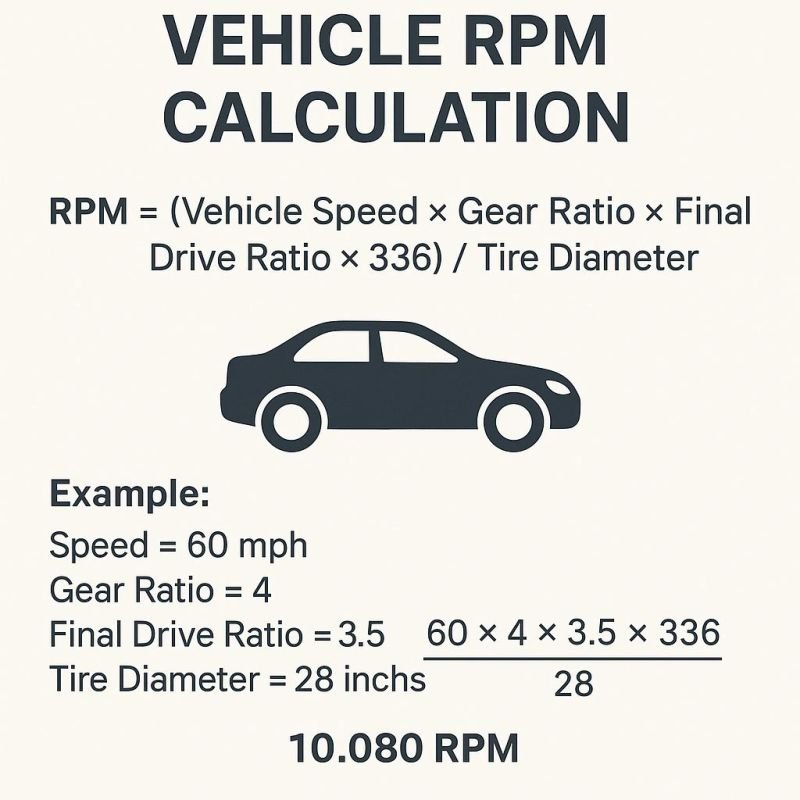

The relationship between RPM and vehicle speed depends greatly on the transmission position and gear ratio.
For example, a vehicle traveling at 80 km/h can have different RPM readings:
- 2nd gear: The engine may reach around 5,000 RPM because the low gear ratio makes the engine work harder.
- 5th gear: The engine may only be around 1,800 RPM because the higher gear ratio allows lower engine rotation.
This is why two vehicles traveling at the same speed of 80 km/h do not necessarily have the same RPM.
Why Is a Tachometer Important for Drivers?
In vehicles with manual transmissions, the tachometer is an important tool for determining the best time to shift gears.
Drivers can keep the engine within its optimal operating range, achieve better fuel efficiency, and avoid spinning the engine too high beyond its safe limit or redline.
For high-performance car enthusiasts, the tachometer is even one of the main indicators for knowing when the engine is producing maximum power.
88eightbox Opinion: The Tachometer Is the “Second Voice” of the Engine
In the author’s opinion, the tachometer is often considered a less important instrument because many modern drivers focus more on vehicle speed or other digital indicators. However, the tachometer provides information that a speedometer cannot.
The RPM needle is a direct reflection of the engine’s condition. From it, drivers can understand how the vehicle behaves, recognize when the engine is operating efficiently, and learn to drive more smoothly.
In an era where automatic transmissions and electric vehicles are becoming increasingly common, the role of the tachometer is indeed starting to decrease. However, for automotive enthusiasts and fans of traditional combustion engines, the tachometer remains one of the most interesting instruments because it shows the “heartbeat” of an engine.
What do you think? Is the tachometer still an important instrument in modern cars, or has it started to lose its role? Share your thoughts in the comments section.
